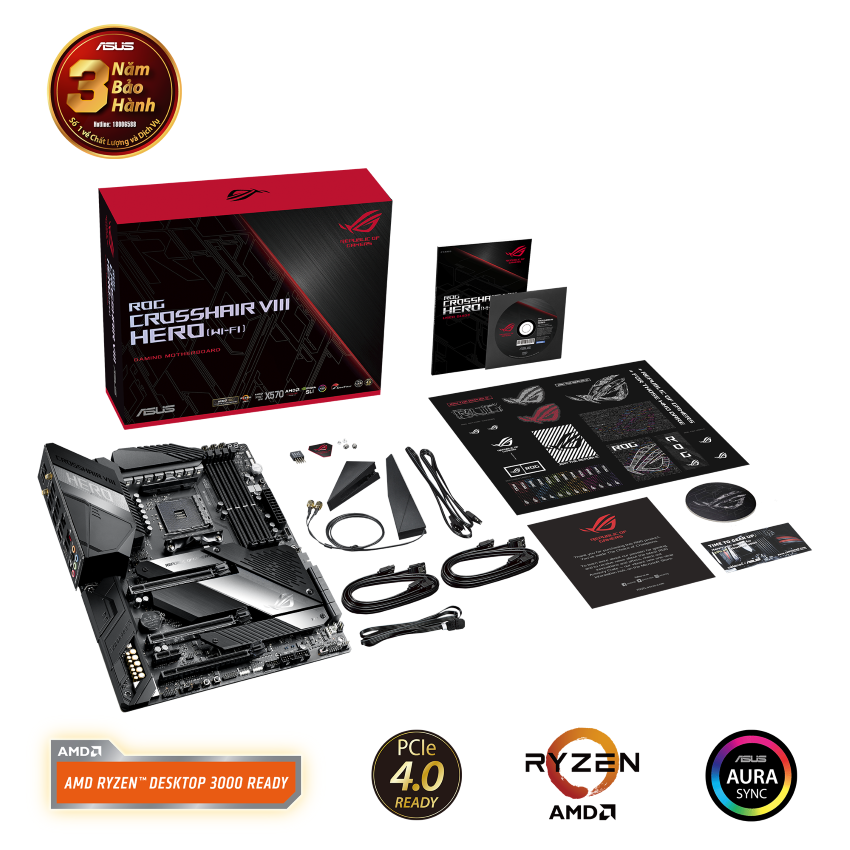

Mainboard ASUS ROG X570 CROSSHAIR VIII HERO Wifi

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

X570 CROSSHAIR VIII WIFI

CPU hỗ trợ

AMD

Chipset

X570

RAM hỗ trợ

4 x DDR4 memory slots, support up to 128GB

Khe cắm mở rộng

3rd Gen AMD Ryzen™ Processors 2 x PCIe 4.0 x16 (x16 or dual x8)

2nd Gen AMD Ryzen™ Processors 2 x PCIe 3.0 x16 (x16 or dual x8)

Ổ cứng hỗ trợ

8 x SATA 6Gb/s ports, 1 x M.2 slot

Cổng kết nối (Internal)

2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
1 x TPM connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 4-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x Speaker connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Cổng kết nối (Back Panel)

1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x Anti-surge 2.5G LAN (RJ45) port
1 x USB BIOS Flashback® Button(s)
5 x Gold-plated audio jacks
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
Anti-surge LAN (RJ45) port

LAN / Wireless

Intel®​ I211-AT Gb LAN

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
